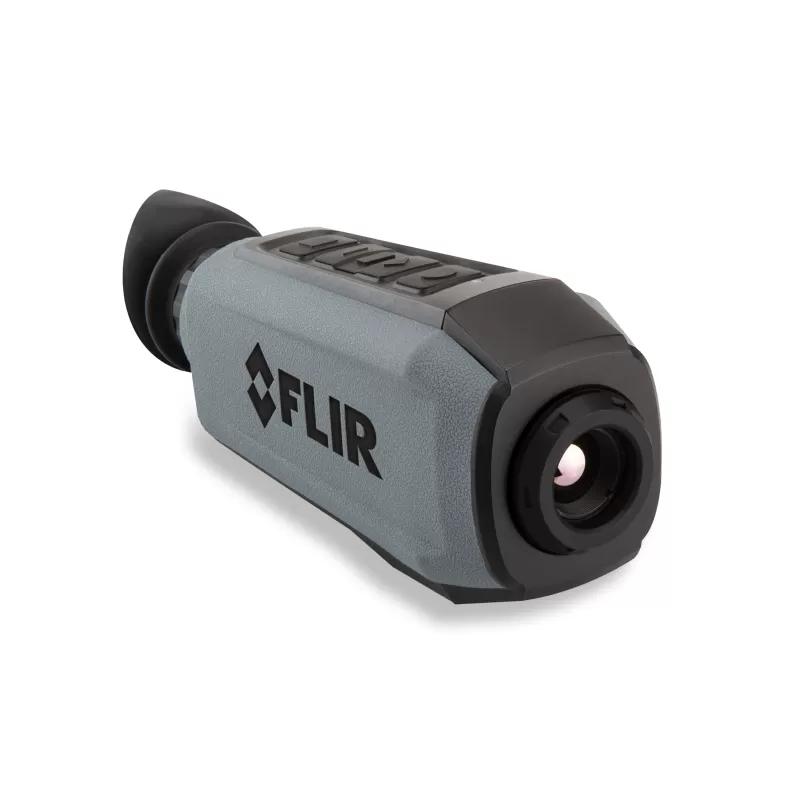

Scion OTM 230

General

Scion OTM130

Scion OTM230

Scion OTM260

Core Technology

               BOSON 12 urn VOx Microbolometer

Detector Resolution

          320x256                                         640x512

Lens System

13.8 mm

18 mm                   18 mm

Field of View (H x W)

16°x 12°

12° x G°

24°x18°

Optical Magnification

1.5x

1.Gx

1x

Digital Zoom

1X I 2X I 4X

1X I 2X I 4X I 8X

Refresh Rate

9 Hz

Video Recording

Yes

Image Capturing

Yes

Internal Memory

2 GB Internal Storage / Optional mlcroSD™ Card (up to 128 GB)

Focusing Range

oo

Eye Relief

16 mm

Display

Quad-VGA (1280x960)High definition display

Display Focus

Manual

User Interface

Temperature Imaging Modes (Ther­mal Palettes)

White Hot; Black Hot; Iron Bow; Rainbow; Graded Fire; Lava

Viewing Modes

Scouting, Picture-in-Picture, Navigation

Picture While Recording (PWR)

Yes

Date/Time Stamp

Yes

Auto Power OFF

Yes

Magnetic Compass

Yes

Accelerometer

Yes

Interfacing

USB Type

USB-C; Power In; Video Out; Video and Image File Transfer

Dock Connection

USB-C

Power

Battery Life

Up to 4.5 hours at 20°^c

Battery Type

6x CR123A 3V Lithium Battery

Scion            Scion Scion OTM130         OTM230 OTM260

Conexiones:

NFC (Near-Field Communication)

Yes

Bluetooth™

BLE 4.1+

Wi-Fi

Video Streaming

GPS

     No          /    Yes      /        Yes

Medidas:

Weight

Without Batteries: 452 g; WithBatteries 572 g

Size

239 x 76.8 x 60.5 mm (9 x 3 x 2.4 in)

Color (Housing)

Gray / Black

Mounting

14-20 Tripod Mount / Docking Station
