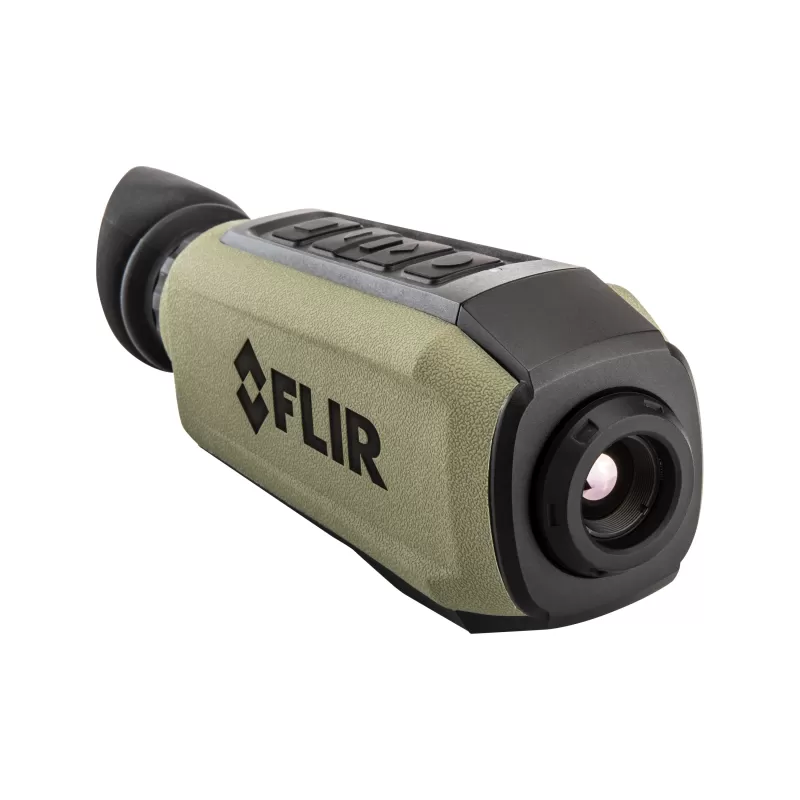

Scion OTM 236

General

Scion OTM136

Scion OTM236

Scion

OTM266

Scion

OTM336

Core Technology

                 BOSON 12 urn VOx Microbolometer

Detector Resolution

                    320x256                                  640x512

Lens System

13.8 mm

18 mm

25 mm

Field of View (H x W)

1B" x 12"

12" x 9"

24"x 18"

18" x 13"

Optical Magnification

1.5x

1.9x

1x

1.3x

Digital Zoom

                1X I 2X I 4X

        1X I 2X I 4X I 8X

Refresh Rate

60 Hz

Video Recording

Yes

Image Capturing

Yes

Internal Memory

2 GB Internal Storage / Optional mlcroSD™ Card (up to 128 GB)

Focus

°° Manual

Eye Relief

16 mm

Display

Quad-VGA (1280x960) FLCOS

Display Focus

Manual

User Interface

Temperature Imaging Modes (Thermal Palettes)

White Hot; Black Hot; Iron Bow; Rainbow; Graded Fire; Lava

Viewing Modes

Scouting, Picture-in-Picture, Navigation

Picture While Recording (PWR)

Yes

Date/Time Stamp

Yes

Auto Power OFF

Yes

Magnetic Compass

Yes

Accelerometer

Yes

Interfacing

USB Type

USB-C; Power In; Video Out; Video and Image File Transfer

Dock Connection

USB-C

Power

Battery Life Battery Type

Up to 4.5 hours at 20°^c 6x CR123A 3V Lithium Battery

Scion                    Scion

OTM136                OTM236

Scion

OTM266

Scion

OTM336

Conexiones:

NFC (Near-Field Communi­cations

Yes

Bluetooth™

BLE 4.1+

Wi-Fi

Video Streaming

GPS

                 No

                           Yes

Physical

Size

239 x 7B.8 x B0.5 mm (9 x 3 x 2.4 in)

227 x 7B.8 x B0.5 mm (9.4 x 3 x 2.4 in)

Weight

With Batteries: 452 g; Without Batteries 572 g

Color (Housing)

Green / Black

Mounting

14-20 Tripod Mount / Docking Station
